Please CONTACT US if you are interested in this product.

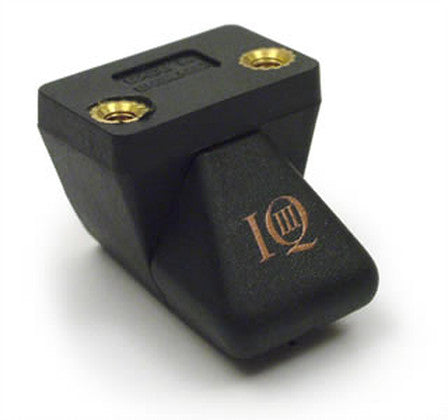

The IQ III features a rigid yet lightweight body made from Pocon, which is equipped with integral threaded inserts for easy installation in the tonearm head-shell. This mounting system greatly improves mechanical coupling between the cartridge body and head-shell in comparison to the traditional nut & bolt fixing.







Technical Specifications

  • Load Resistance: 47 Ohms
  • Load Capacity: 150 - 200 pF
  • Internal Induction: 570 mH
  • Internal Resistance: 660 Ohms
  • Frequency Response: 20Hz to 20KHz, +/- 2dB
  • Weight: 6.3g
  • Fixing Centres: 12.7mm / 0.5"
  • Tracking Force / Weight: 1.5g - 2.5g (1.75g nominal)
  • Channel Seperation 25dB @ 1 KHz
  • Sensitivity: 6.5mV +/- 1.5dB (1KHz @ 5cm/sec)
  • Static Compliance: (N lateral) 24mm / (N vertical) 16mm
  • Equivalent Tip Mass: 0.45mg
  • Vertical Tracking Angle: 24 degrees
