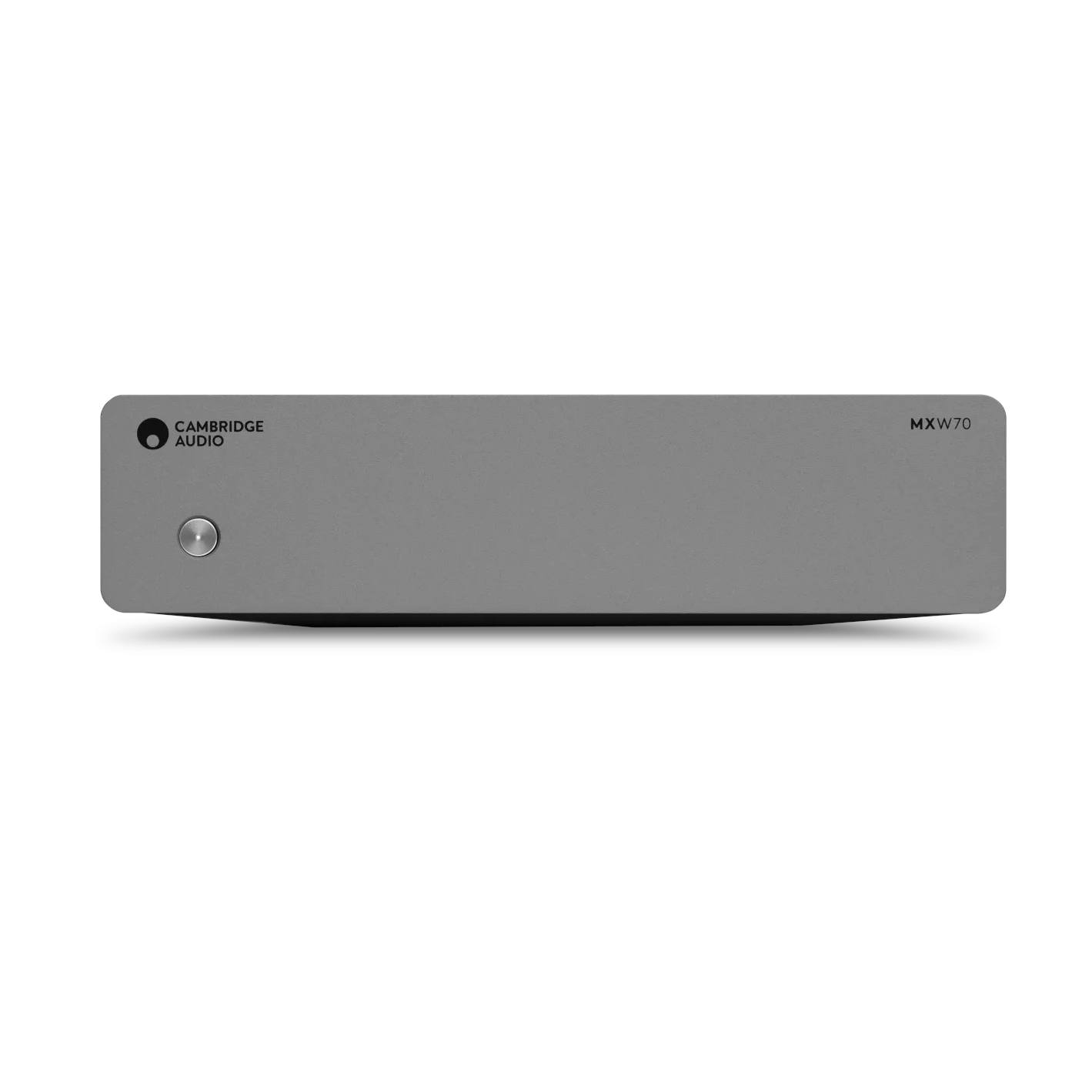

Cambridge Audio MXW70 Compact Power Amplifier
Don’t let its size fool you — the MXW70 delivers refined stereo power from a half-width chassis. Engineered to drive a wide range of speakers with control and clarity, it’s an ideal partner for compact hi-fi systems and a perfect match with the MXN10 Music Streamer.
- 70W per channel in stereo mode
- Bridgeable to mono for 250W into 8 ohms
- Hypex NCore Class D amplification for efficient, controlled power
- RCA and XLR inputs for flexible system integration
- 12V trigger in + trigger pass-through for easy power syncing
- Compact footprint — just 215mm wide
Product Overview
Designed in London, the MXW70 is built to deliver high-fidelity amplification from a compact, half-width chassis that fits easily into an existing setup — or forms the basis of a modern, space-saving hi-fi system.
Run it in stereo for a powerful, refined compact system — or bridge it to mono mode for serious headroom when you want maximum control and scale.
Power & Performance
- Stereo power: 2 × 70W into 8Ω / 2 × 125W into 4Ω
- Mono (bridged) power: 250W into 8Ω
- THD+N (unweighted): <0.015% @ 5W/8Ω
- Damping factor: >180 @ 1kHz / 8Ω

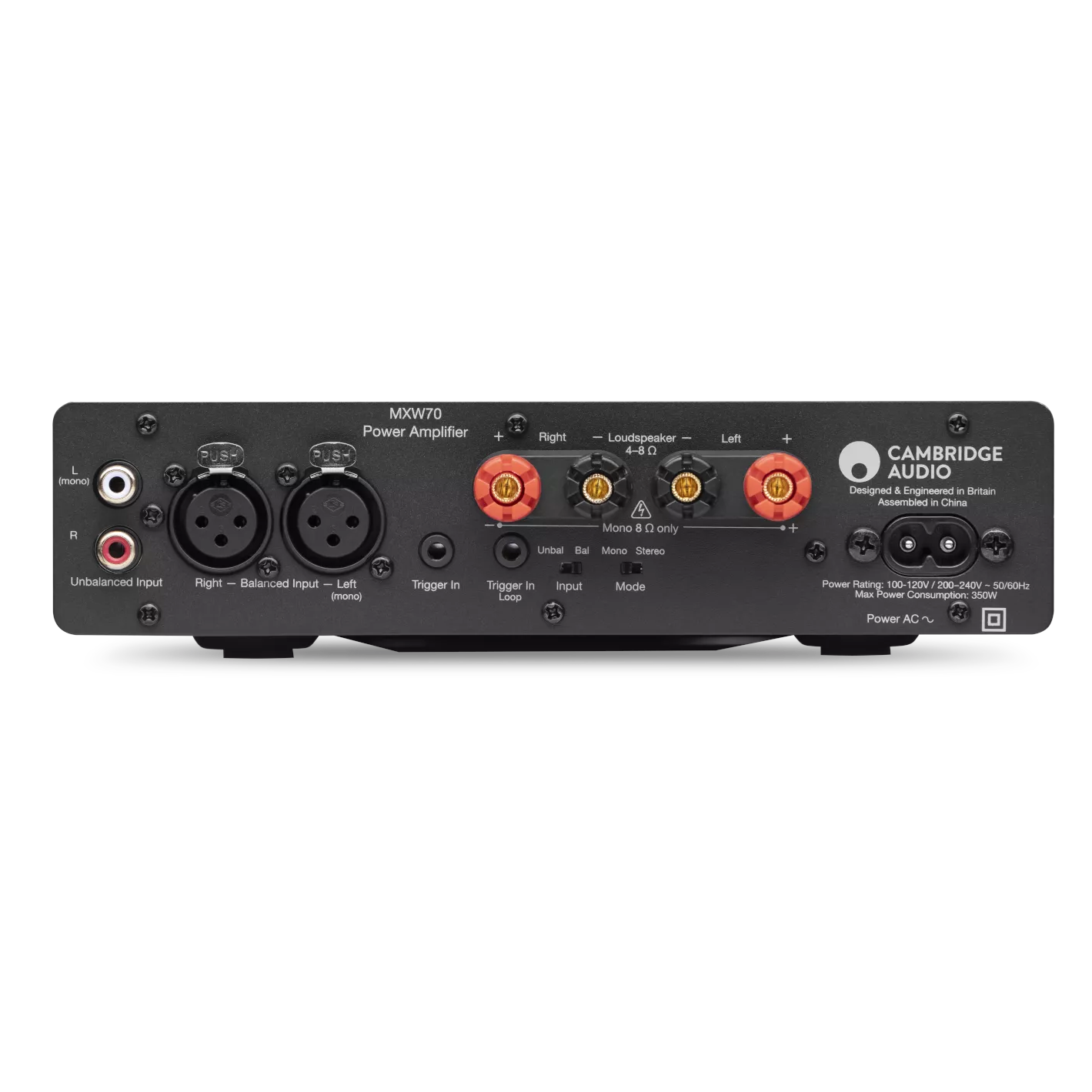

Connectivity
- Inputs: Balanced XLR, Unbalanced RCA
- Speaker outputs: 1 set
- 12V trigger: Trigger input + trigger pass-through
- Input impedance: 22kΩ (RCA), 35kΩ (XLR)
Use RCA for simple hook-up, or XLR for a premium, low-noise connection in more performance-focused systems.
Build & Design
- All-metal casework in Cambridge Audio “Lunar Grey”
- Half-width chassis designed for easy placement in compact spaces
- Dimensions (H × W × D): 57 × 215 × 215 mm
- Weight: 1.65 kg
- Standby power: <0.5W
- Max power consumption: 300W
Perfect Pairings
The MXW70 is designed to slot neatly into a compact, high-performance stack:
- MXN10 Music Streamer for a complete compact streaming hi-fi system
- DacMagic 200M for an added digital upgrade and headphone listening
In the Box
- Power cords
- Welcome letter
- Registration card
- Safety guide
Want big, controlled sound from a compact system? MXW70 brings serious stereo power, premium connectivity, and flexible mono bridging — all in a half-width chassis built for modern setups.
