Meridian 218

Meridian 218

Please CONTACT US if you are interested in this product.

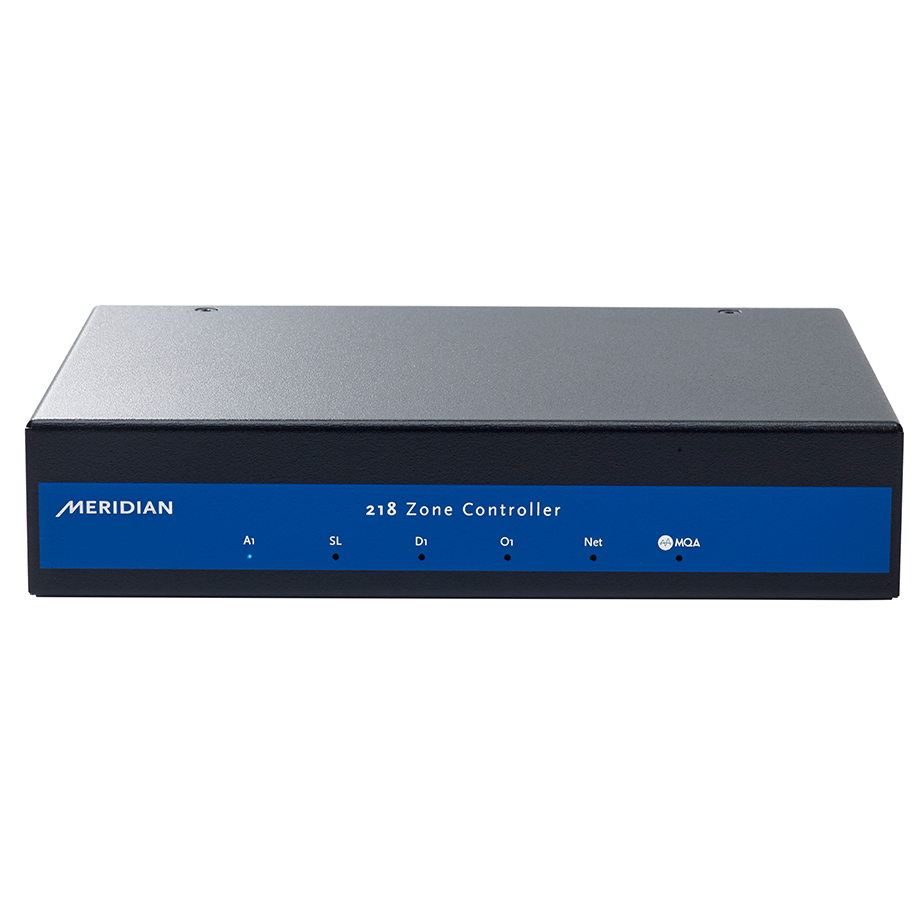

The 218 Zone Controller contains all of the functionality needed to create a Hi-Res audio zone. Accommodating both local and distributed audio, whether analogue or digital, the Meridian 218, which comes equipped with lip-sync technology is also an endpoint for our award-winning Sooloos music management platform.

With both digital and analogue inputs and outputs, the MQA–enabled Meridian 218 is suitable for a wide range of distributed audio applications from single zone to multi-zone use. Control features including IP and IR, allow this versatile 1U tall product to be easily partnered with any of Meridian’s power amplifiers or DSP loudspeakers.



AUDIO INPUTS

  • One 2-channel digital coaxial S/PDIF input. 44.1kHz to 192kHz sampling and up to 24-bit
  • One 2-channel Meridian Speakerlink input. 44.1kHz to 192kHz sampling and up to 24-bit
  • One 2-channel digital optical TOSLINK input. 44.1kHz to 96kHz sampling and up to 24-bit
  • One 2-channel analogue input
  • One network input (Ethernet) for connection to Meridian
  • Sooloos or alternative control interface

AUDIO OUTPUTS

  • 2 Speakerlink digital outputs
  • Single RCA digital output
  • 2-Channel unbalanced analogue output (192kHz DAC)

CONTROL SIGNALS

  • IP Control: Network socket for use with Meridian IP Control iPad App, other Sooloos control interface and third party control systems
  • IP Control
  • IR on 3.5mm jack

 DISPLAY

  • LEDs to indicate source selection and MQA status

DIMENSIONS

  • HEIGHT: 42mm [1.65in]
  • WIDTH: 204mm [8.03in]
  • DEPTH: 150mm [5.91in]
  • WEIGHT: Standalone: 0.56Kg [1.2lbs]

CONSTRUCTION

  • 1U tall rack kit available with space for two units
  • Universal mounting bracket
  • All-aluminium chassis

POWER

  • High performance power supply: 100V ac 50/60 Hz | 110-120V ac 50/60Hz | 220-240V ac 50/60Hz
