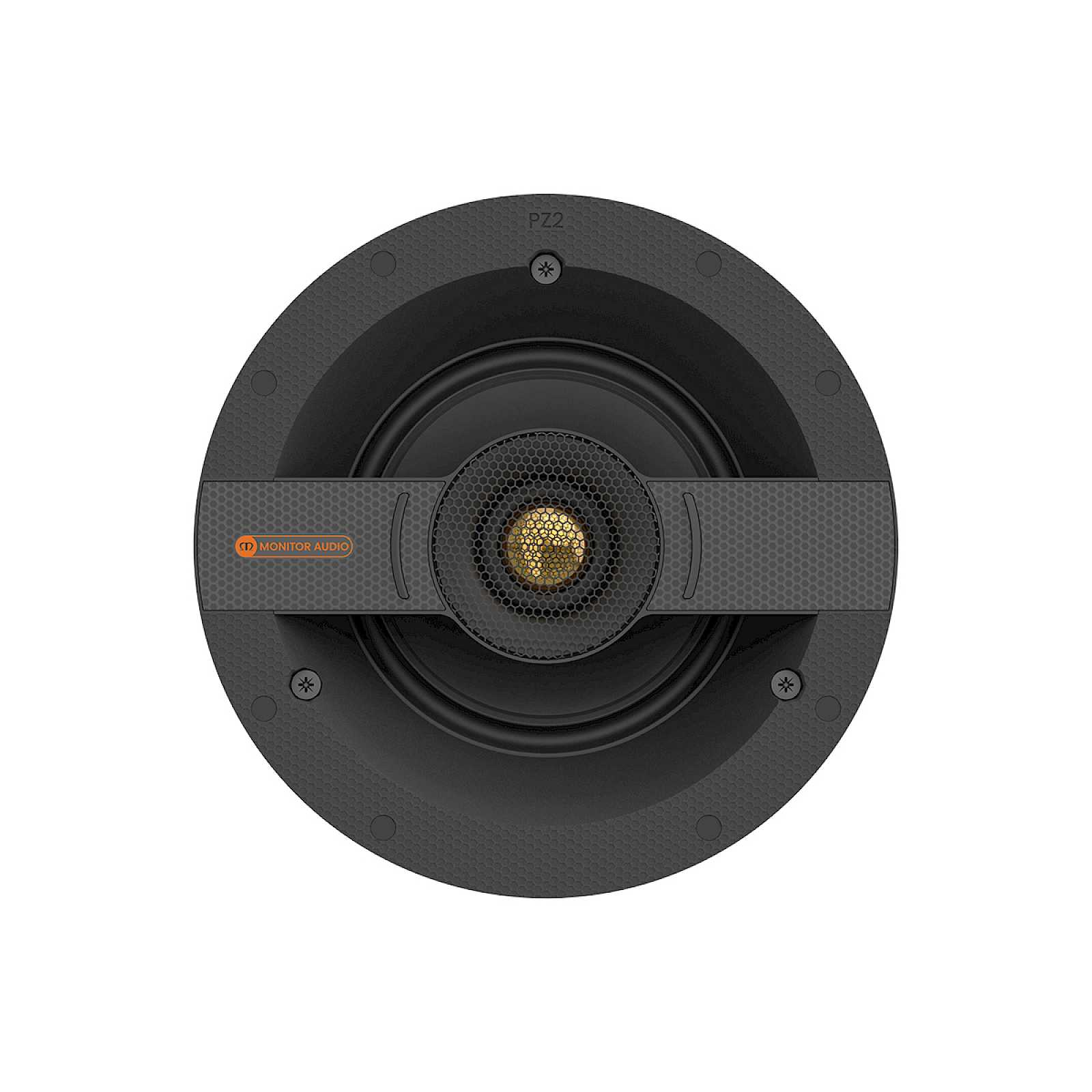

This small Tier 1 in-ceiling loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 171 mm, a revolutionary Quik-Link speaker cable connector, and Tri-Grip II for quick, simple, reliable, and strong installation and fitment.
Features at a glance:

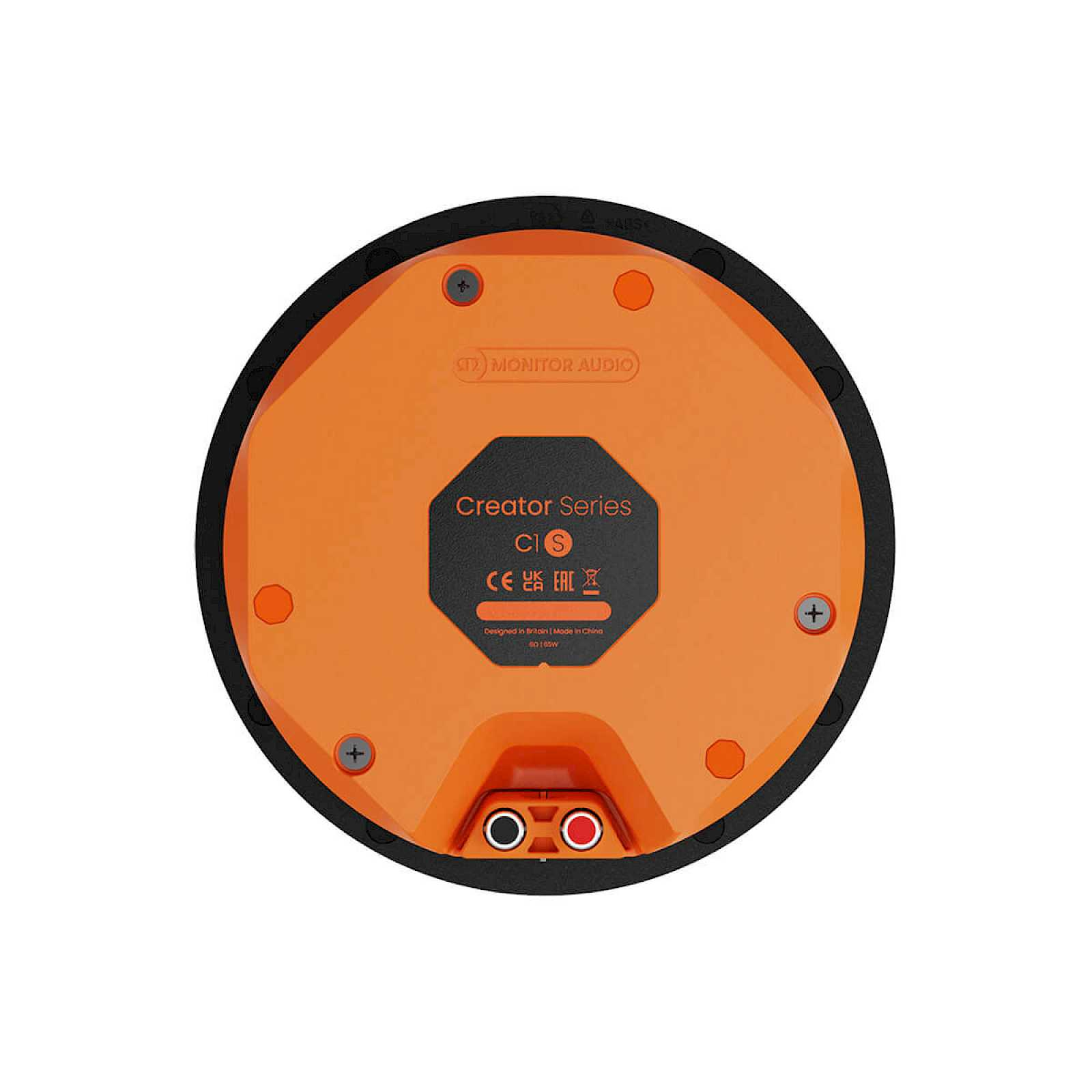

Ideal for cost-effective installations | Two-way design | 1 x 1" C-CAM tweeter with UD Waveguide I 1 x 5" C-CAM mid-bass driver | Quik-Link speaker cable connector for quicker installation | Tri-Grip II for easy and secure fitment
System Format
2-Way
Channels
1
Frequency Response, Installed (-6dB)
40 Hz – 30 kHz
Nominal Impedance
8 ohm
Minimum Impedance
6.6 Ohm @ 150 Hz
Sensitivity
84 dB
Maximum Peak SPL
110 dB, single speaker @ 1m Z-Weighted
Continuous Power Handling
50 W RMS into nominal impedance, pink noise with 6dB crest factor
Recommended Amplifier Power
25 – 100 W RMS into 8 ohm, music signal
Crossover Frequency
LF/HF: 3 kHz
Drive Unit Complement
1 x 5" (127 mm) C-CAM mid-bass driver
1 x 1" (25 mm) C-CAM tweeter
1 x 1" (25 mm) C-CAM tweeter
Pre-Construction Bracket
CS-B
Mounting Depth
99 mm (3 7/8")
Cut-Out Hole Diameter
171 mm (6 3/4")
External Dimensions
201 x 201 x 103 mm
(7 15/16" x 7 15/16" x 4 1/16")
(7 15/16" x 7 15/16" x 4 1/16")
Weight
1.4 kg (3 lb 1 oz) each
Cabinet Finish
Matte Black & Orange
Sold As
Single Unit with CS-Round Grille (white)
Warranty
Lifetime
