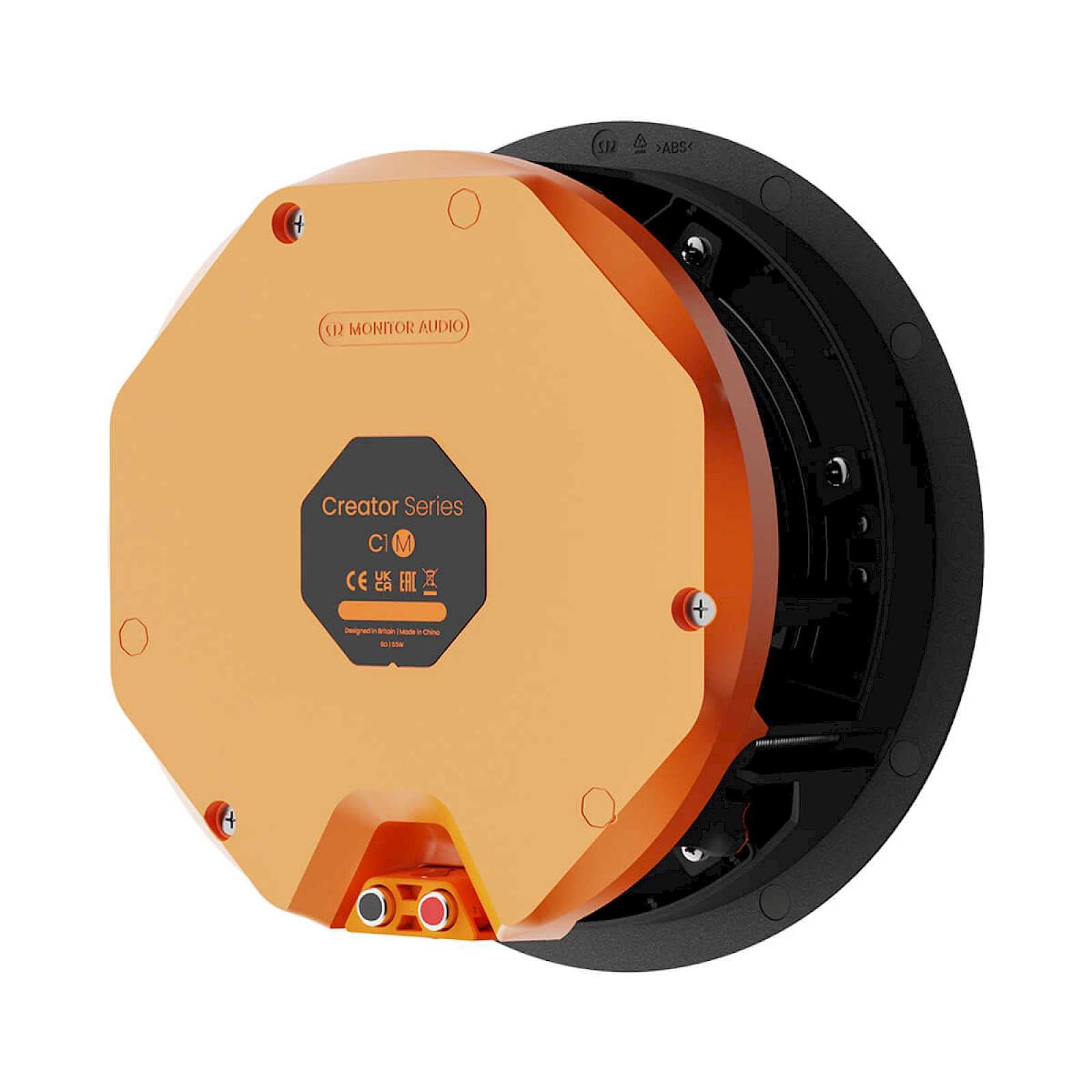

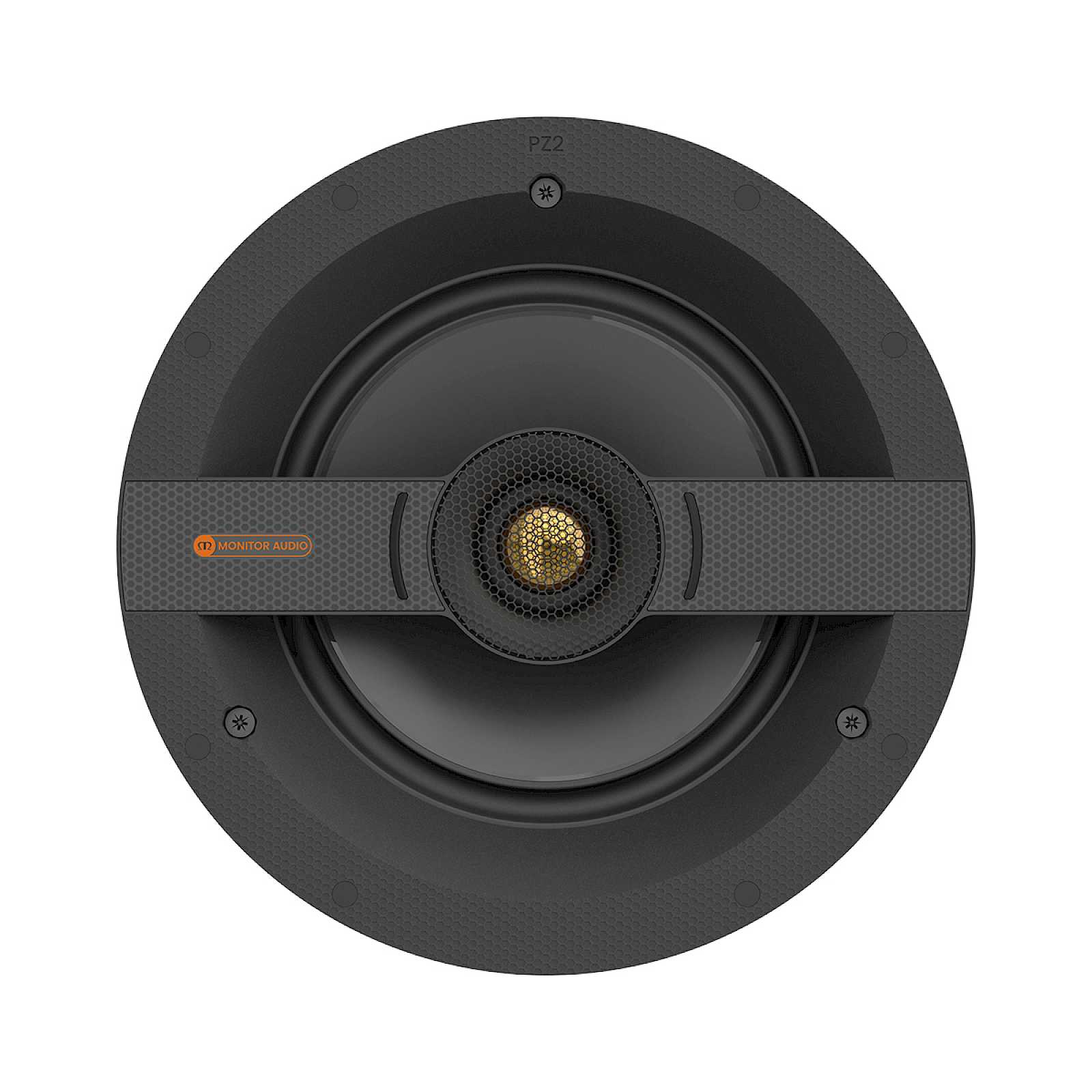

This medium Tier 1 in-ceiling loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 212 mm, a revolutionary Quik-Link speaker cable connector, and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.
Features at a glance:
Ideal for cost-effective installations | Two-way design | 1 x 1" C-CAM tweeter with UD Waveguide I 1 x 7" C-CAM mid-bass driver | Quik-Link speaker cable connector for quicker installation | Tri-Grip II for easy and secure fitment
System Format
2-Way
Channels
1
Frequency Response, Installed (-6dB)
35 Hz – 30 kHz
Nominal Impedance
8 ohm
Minimum Impedance
6.5 Ohm @ 150 Hz
Sensitivity
86 dB
Maximum Peak SPL
113 dB, single speaker @ 1m Z-Weighted
Continuous Power Handling
65 W RMS into nominal impedance, pink noise with 6dB crest factor
Recommended Amplifier Power
35 – 130 W RMS into 8 ohm, music signal
Crossover Frequency
LF/HF: 2 kHz
Drive Unit Complement
1 x 7" (178 mm) C-CAM mid-bass driver
1 x 1" (25 mm) C-CAM tweeter
1 x 1" (25 mm) C-CAM tweeter
Pre-Construction Bracket
CM-B
Mounting Depth
99 mm (3 7/8")
Cut-Out Hole Diameter
212 mm (8 3/8")
External Dimensions
242 x 242 x 103 mm
(9 1/2" x 9 1/2" x 4 1/16")
(9 1/2" x 9 1/2" x 4 1/16")
Weight
1.9 kg (4 lb 3 oz) each
Cabinet Finish
Matte Black & Orange
Sold As
Single Unit with CM-Round Grille (white)
Warranty
Lifetime
