DEMO

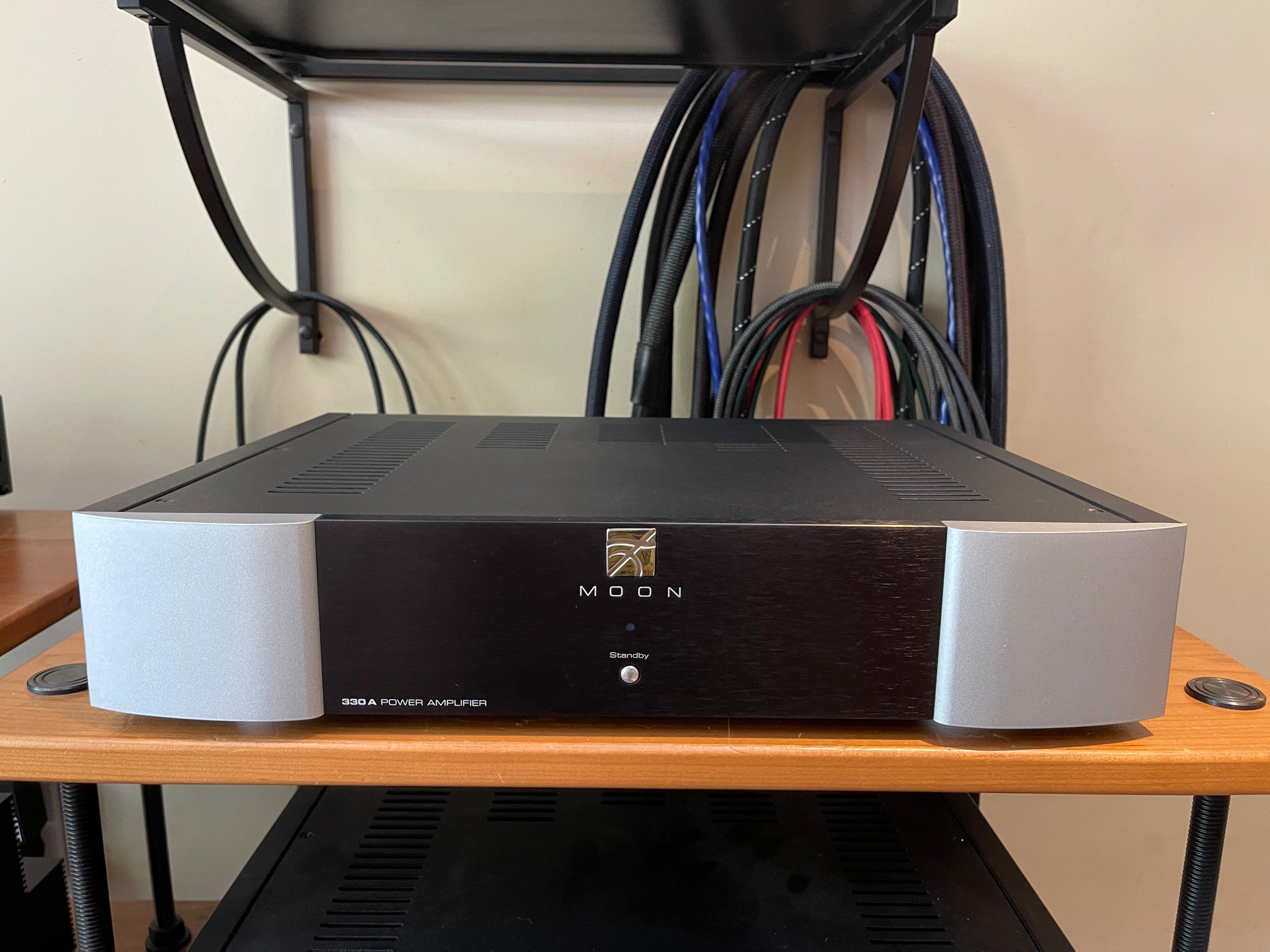

The MOON NEO 330A is a high-performance stereo power amplifier that exemplifies Simaudio's reputation for combining technical precision with a natural, musical presentation. Designed and hand-built in Quebec, Canada, the 330A delivers exceptional control, transparency, and effortless dynamics, making it an outstanding partner for demanding loudspeakers and premium preamplifiers.
Key Features
- High-current Class A/B stereo power amplifier
- Dual-mono inspired internal architecture
- Massive toroidal transformer with substantial power reserves
- Fully balanced XLR and single-ended RCA inputs
- SimLink™ communication ports for MOON system integration
- 12V trigger input/output
- Premium Canadian construction
Specifications
- Power Output (8Ω): 125 W per channel
- Power Output (4Ω): 250 W per channel
- Amplifier Topology: Class A/B
- Frequency Response: 10 Hz – 100 kHz (+0/-3 dB)
- Total Harmonic Distortion: <0.02%
- Signal-to-Noise Ratio: 120 dB
- Gain: 31 dB
-
Input Impedance:
- RCA: 47 kΩ
- XLR: 100 kΩ
-
Inputs:
- 1 × Balanced XLR
- 1 × Single-ended RCA
- Outputs: Heavy-duty binding posts
-
Control Connections:
- SimLink™
- 12V Trigger In/Out
- RS-232
- Power Consumption (Idle): Approximately 35 W
- Dimensions (W × H × D): 18.75 × 3.5 × 16.8 in (47.6 × 8.9 × 42.7 cm)
- Weight: Approximately 33 lb (15 kg)
- Country of Manufacture: Canada
