THE DUALITY OF SOUND
A harmony of opposites, Lilium is designed to synthesize opposing elements while maintaining each one’s independent nature.
TRADITION AND INNOVATION
Lilium unites two cabinets into a unique fusion of style and technology. This endeavour captures Sonus Faber's heritage while embracing groundbreaking innovations by our Research and Development team. Lilium harmonizes two distinct acoustic chambers to deliver both powerful low frequencies as well as the heart of the sound spectrum in pristine fashion.
CONTRAST AND COMPLEMENT

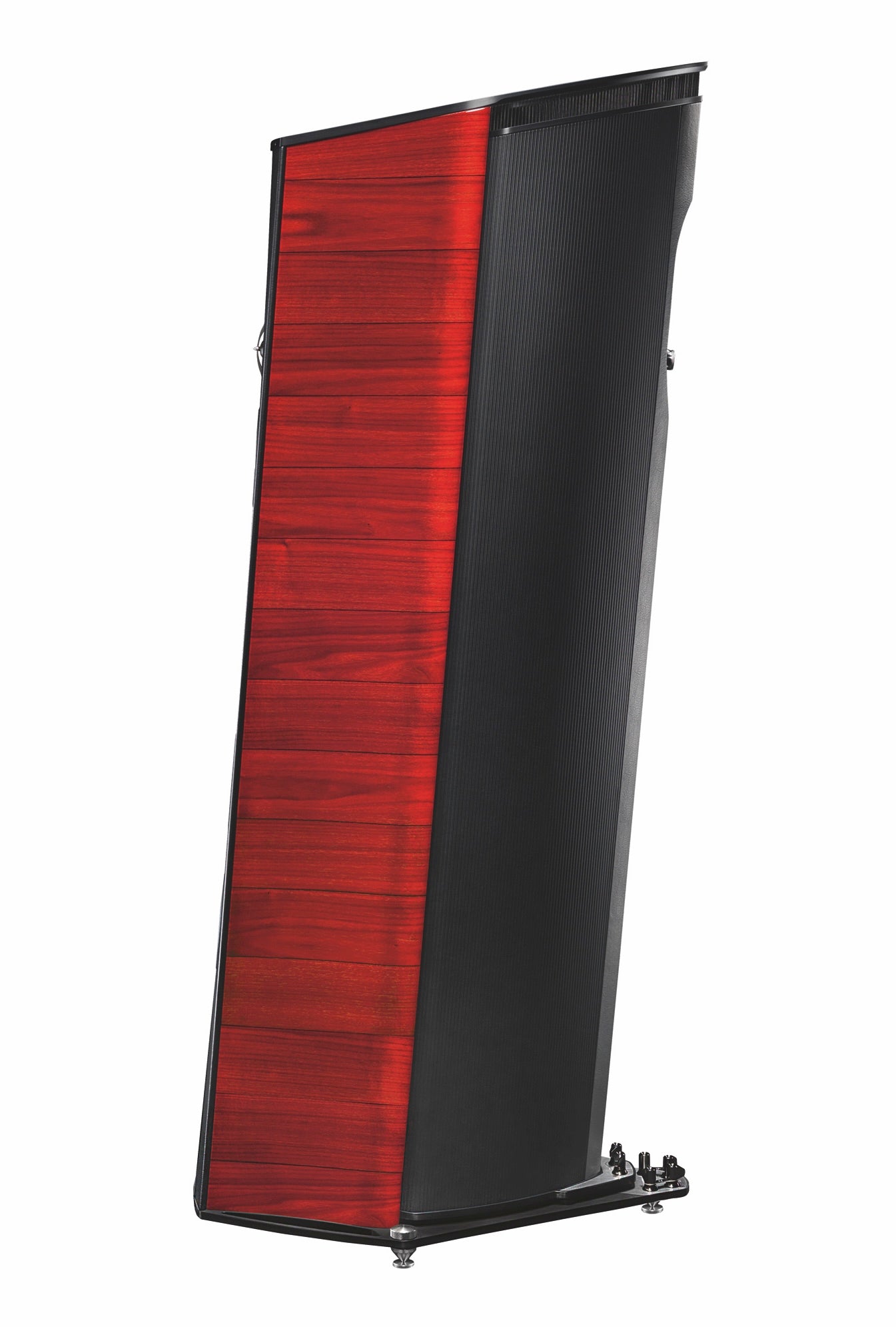

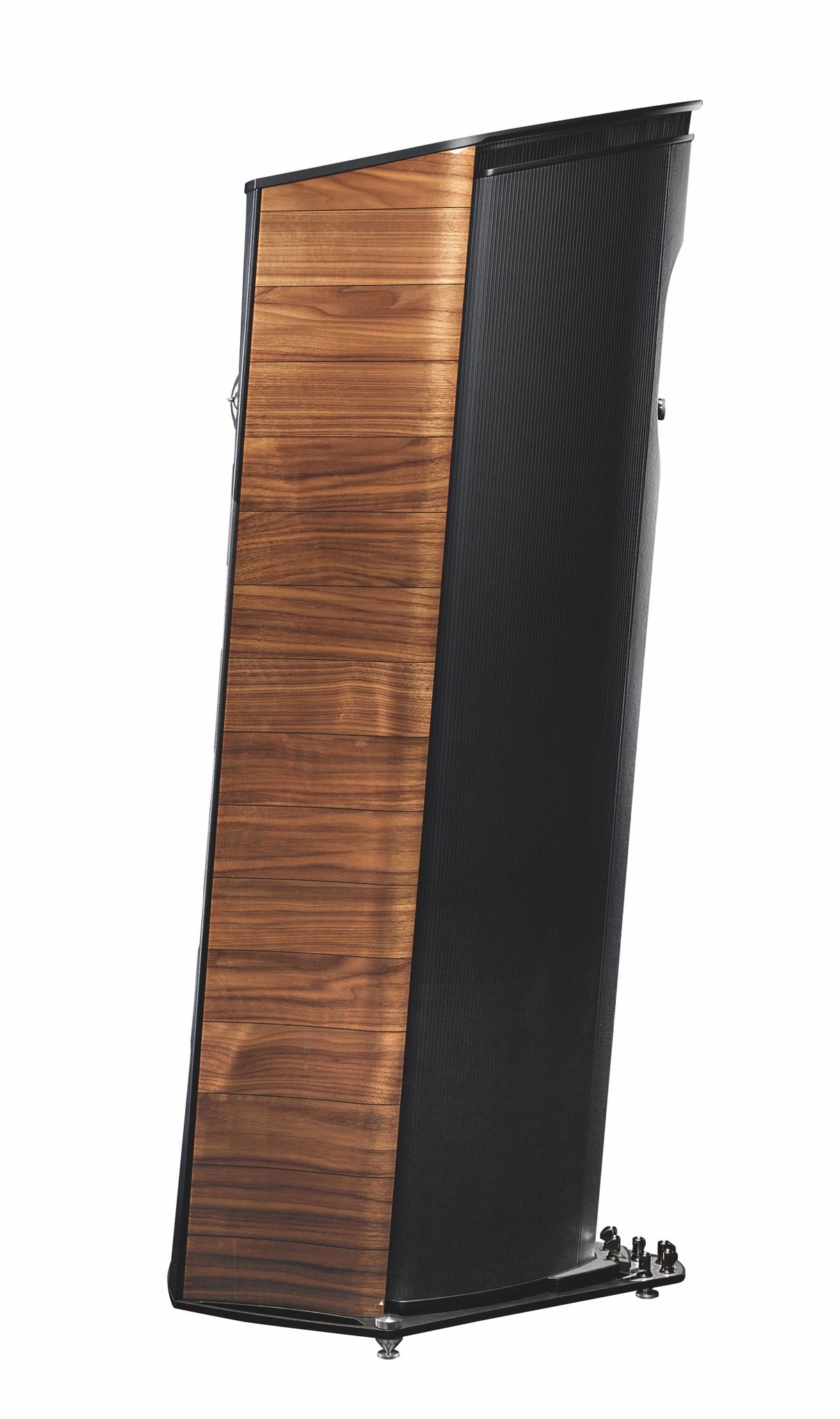

The lyre-shaped front cabinet, designed for forward sound emission, ensures structural strength and efficient energy management. Meanwhile, the rear cabinet, designed for infra-low frequencies, eliminates resonance with strategic reinforcements. Lilium's front and rear cabinets use different materials – finely grained hard walnut wood for the front and soft leather for the rear - a design that reinforces the duality of the speaker’s engineering philosophy.
THE SHAPE OF NATURAL SOUND
Deriving its name from the Latin word for “lily”, Lilium’s design seamlessly merges two distinct identities within a classical "lyre" silhouette. This synthesis of natural shapes exudes grace and harmony. Its top plate, made of tempered glass, mirrors the lily's form, revealing the passive radiator beneath. Infra-low frequencies travel through the pavement for optimal sound dispersion, and frequency modulation fine-tunes the passive radiator's movement.
INFRA-WOOFER
The infra-woofer operates in "P.Z.I." (Pressure Zone Interface) acoustic conditions, creating a ground effect for optimal interaction with the environment and infra-low frequencies. The output level can be adjusted with the "Deep Low Control" for seamless speaker integration in each unique environment.
---------------------------------------
3.5 way, full para-aperiodic vented box
Loudspeakers:
Tw: Ø 28 mm, H28 XTR-04, High Power Neodymium, Extended Range Soft Dome, DAD™ Arrow Point.
Md: Ø 180 mm, M18 XTR-04 Neodymium Magnet System,
W: Ø 3x180 mm W18XTR-16,
Sw: Ø 260 mm SW26XT-08.
Crossover Points:
55, 150, 200, 3000 Hz
Premium High-End components
Frequency response:
20 Hz – 35000 Hz
Sensitivity:
92 db SPL (2.83V/1 m)
Nominal impedance:
4 Ohm
Recommended power amplifier:
100W - 800W, undistorted signal
Connectivity:
6 connectors binding post: Mid-Hi, Low, Sub
Decoupling Systems:
ZVT
Product dimensions (HxWxD):
1600 x 491 x 705 mm / each
63 x 19.3 x 27.7 in / each
Weight:
103 kg (227.1 lbs) / each
Cabinet:
Double curvature - Lute shape
High gloss wood
Black leather
Aluminium
